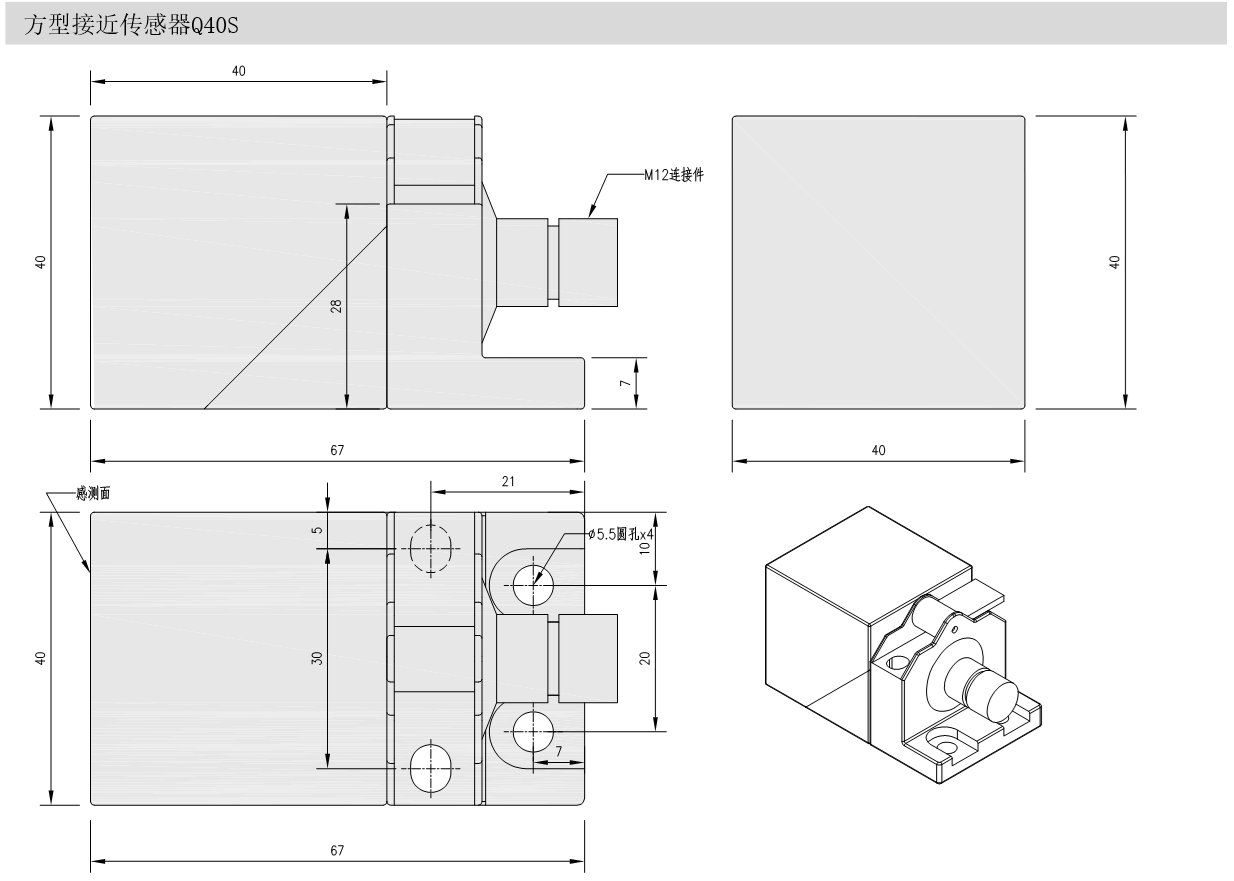

类型 | 方型接近传感器Q40S埋入式 | 方型接近传感器Q40S非埋入式 | |||
外观 |
| ||||
型号 | NPN常开 | PI-15Q40SNO | PI-20Q40SNO | PI-25Q40SNOH | PI-40Q40SNOH |
NPN常闭 | PI-15Q40SNC | PI-20Q40SNC | PI-25Q40SNCH | PI-40Q40SNCH | |
PNP常开 | PI-15Q40SPO | PI-20Q40SPO | PI-25Q40SPOH | PI-40Q40SPOH | |
PNP常闭 | PI-15Q40SPC | PI-20Q40SPC | PI-25Q40SPCH | PI-40Q40SPCH | |
感应距离(mm) | 15mm | 20mm | 25mm | 40mm | |
开关频率(KHz) | 0.5Hz | 0.25KHz | 0.25KHz | 0.15KHz | |
响应时间 | 0.5ms | 1ms | 1ms | 2ms | |
重复精度 | <3% | ||||
LED指示灯 | 有 | ||||
磁滞 | <15%(sr) | ||||
工作电压 | 10～30 VDC | ||||
无负载电流 | <10mA | ||||
最大负载电流 | 150mA | ||||
过载保护点 | 180mA | ||||
短路保护 | 有 | ||||
漏电流 | <0.01mA | ||||
电压降 | <1.5V | ||||
保护等级 | IP67 | ||||
工作环境温度 | -25℃～70℃ | ||||
温度飘移 | <10% | ||||
外壳材质 | ABS | ||||
感应面材质 | ABS | ||||
连接方式 | M12插接件 | ||||

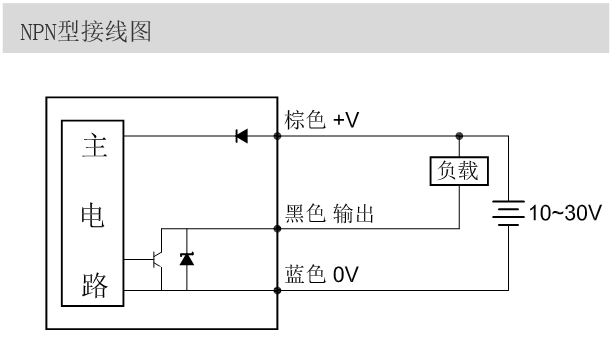

PI-15Q40SNO；PI-15Q40SNC；PI-20Q40SNO；PI-20Q40SNC；PI-25Q40SNOH；PI-25Q40SNCH；PI-40Q40SNOH；PI-40Q40SNCH

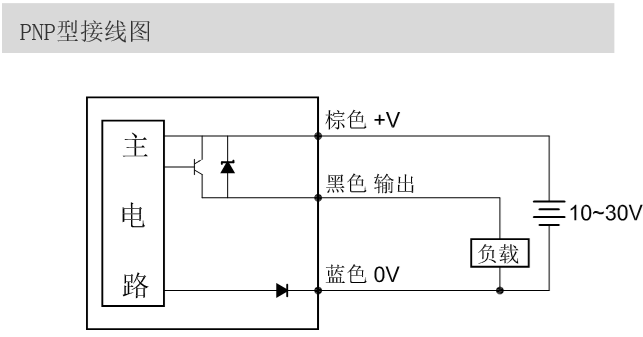

PI-15Q40SPO；PI-15Q40SPC；PI-20Q40SPO；PI-20Q40SPC；PI-25Q40SPOH；PI-25Q40SPCH；PI-40Q40SPOH；PI-40Q40SPCH
PI-15Q40SNO；PI-15Q40SNC；PI-20Q40SNO；PI-20Q40SNC；PI-25Q40SNOH；PI-25Q40SNCH；PI-40Q40SNOH；PI-40Q40SNCH；PI-15Q40SPO；PI-15Q40SPC；PI-20Q40SPO；PI-20Q40SPC；PI-25Q40SPOH；PI-25Q40SPCH；PI-40Q40SPOH；PI-40Q40SPCH
